A common mistake we see on Gatineau construction sites is assuming any fill will compact well if you add water. That approach leads to settlement, cracking, and failed compaction tests later. The Proctor test establishes the exact moisture content and dry density your specific soil needs to achieve design strength. Without it, you are guessing. We run both Standard (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) and Modified (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) procedures depending on the energy level your project requires. For road subgrades and light fills, Standard Proctor is sufficient. For heavy traffic pavements or structural backfill, Modified Proctor matches the higher compactive effort of modern rollers. Before placing fill on any site in Gatineau, we recommend running a compression simple test on undisturbed samples to correlate strength with compaction parameters.
A flat Proctor curve in Champlain Sea clay means a wider moisture tolerance but lower peak density — critical for specifying compaction in Gatineau fills.
Scope of work in Gatineau
Typical technical challenges in Gatineau

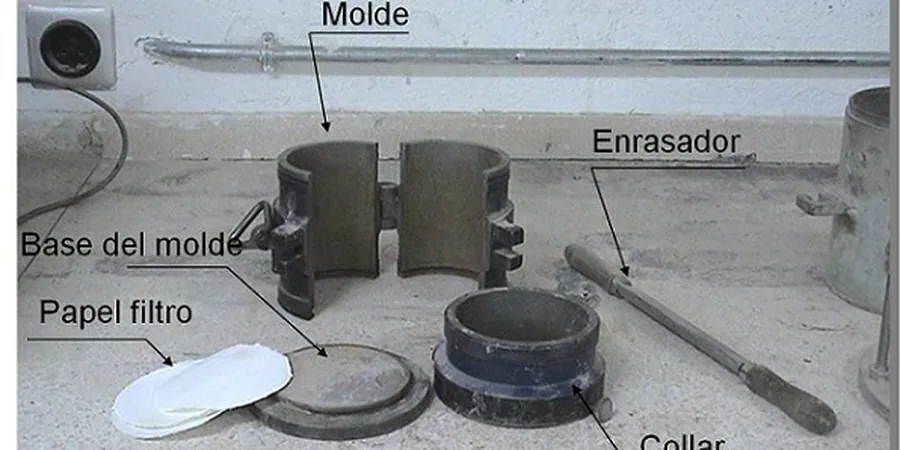

We bring a mechanized compactor to Gatineau sites that applies a controlled energy equivalent to Modified Proctor. The device has a 10-lb hammer that drops 18 inches onto a 6-inch mold, exactly replicating ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2). The problem is that field compaction rarely matches lab conditions unless you control lift thickness and moisture continuously. We have seen projects where the contractor thought they hit 98% of Modified but the nuclear gauge showed 92%. The gap comes from soil variability within the same borrow pit. Running multiple Proctor curves across different samples from the same source reduces that risk. We recommend one Proctor per 500 m³ of fill material for critical structural backfill.
Our services
We offer the full range of Proctor testing services for Gatineau contractors, engineers, and municipalities. Each test is run in our accredited lab with temperature-controlled curing and automated compaction equipment to eliminate operator variability.
Standard Proctor Test (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2))
For light to moderate compaction applications such as residential subgrades, utility trench backfill, and low-volume roads. We run a 5-point curve with moisture content adjustments to pinpoint optimum. Results include dry density vs. moisture plot, zero air voids curve, and report signed by the responsible engineer.
Modified Proctor Test (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2))
For heavy-duty compaction under highways, airport runways, industrial slabs, and retaining wall backfill. Higher compactive effort matches modern vibratory rollers. We use the 6-inch mold when material contains particles up to 3/4 inch. Curve includes oversize correction per ASTM D4718 if gravel content exceeds 5%.
Field Density Verification & Proctor Correlation
We take the lab Proctor curve to your Gatineau site and run nuclear gauge or sand cone tests to calculate percent compaction. Our team provides real-time moisture adjustment recommendations so you meet the specified density without overwatering or under-compacting.
Frequently asked questions
What is the difference between Standard and Modified Proctor in Gatineau projects?
Standard Proctor uses 12,400 ft-lbf/ft³ of compactive energy, suitable for fills under light loads like residential slabs. Modified Proctor uses 56,000 ft-lbf/ft³, matching heavy rollers for roads and structural fills. For Gatineau clay soils, Modified often yields a lower optimum moisture and higher maximum dry density.
How long does a Proctor test take in your Gatineau lab?
A full Proctor curve with 5 to 6 points typically takes 3 to 5 business days from sample receipt. This includes oven drying each point to determine moisture content. We can expedite to 2 days for critical path items at no extra charge.
How much does a Proctor test cost in Gatineau?
The typical cost ranges between CA$120 and CA$280 per test, depending on whether it is Standard or Modified and how many points are run. Volume discounts apply for multiple samples from the same project.
Do you need undisturbed samples for Proctor testing?
No. Proctor tests use disturbed, bulk samples because the soil is recompacted in the lab. We require approximately 35 kg of material for a full curve. For cohesive soils, we also recommend a companion moisture content and Atterberg limits to classify the material.
What happens if my field compaction does not match the Proctor curve?
First we verify the field density method and moisture content. If the gap persists, we run a new Proctor on a representative field sample to check for material changes. In Gatineau, glacial till can vary within a single borrow pit, so multiple Proctor curves are common. We also check for oversize particles that require correction.
